| System Parameters |
| Processor&Chipset | •Onboard Intel® J1900 Four Cores, 2.0GHz, 2M Cache ,NM70 Chipset
•Onboard Intel® N100 Four Cores, 3.4GHz, 6M Cache ,Intel® UHD Graphics
•Onboard Intel® i3,i5,i7, 4th~14th Generation |
| Memory | 1 x DDR3/DDR4/DDR5 SO-DIMM socket, 2GB/4GB/8GB/16GB/32GB |
| Storage | 1 x 2.5" SATA Drive Bay, 500GB/1TB/2TB
1 x full size mSATA socket 16GB/32GB/64GB/128GB/256GB |
| Cooling System | Fanless design |
| BIOS | AMI 16MB DPI Flash |
| Watchdog Timer | 255 level, 0~255 sec |
| LAN | 1 x Realtek RT8111E, 10/100/1000M, Support PXE, Wake on Lan |
| Audio | Realtek ACL662 Audio controller, Line-out, Mic-in. |
| Expansion Port | 2 x MINI PCI-E full slot, 1 x SIM |
| OS | Linux/ Win dows XP/7/8/10/11 |
| Expansion Function |
| GPIO | Optional (8x GPIO) 8-bit Programmable DIO |
| 3G/4G | Optional |
| WIFI/BT | Optional(802.11 a/b/g/n, Bluetooth 4.0) |
| RS422/485 | Optional |
| SIM | 1 x internal |
| 2X Lan | Optional |
| Display |
| Rear IO output | Support VGA+ HDM, independent two –view display |
| Inner Output | LVDS single channel 18BIT, with definition up to 1440x900@60Hz, default definition 800x600@60Hz |
| Degree of protection |
| Front Panel IP65 | Default |
| Whole IP65 | Optional |

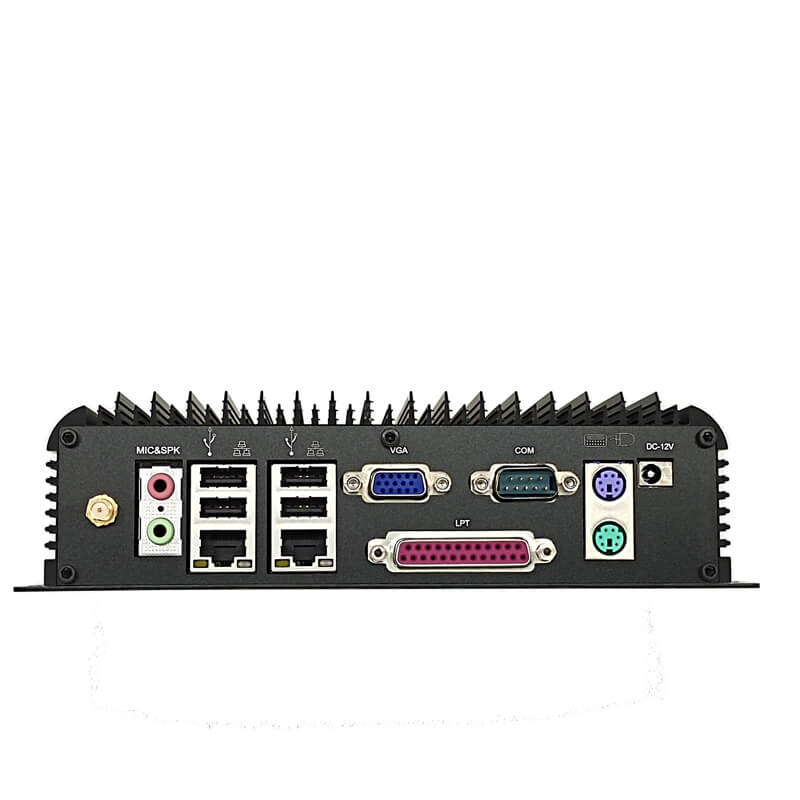

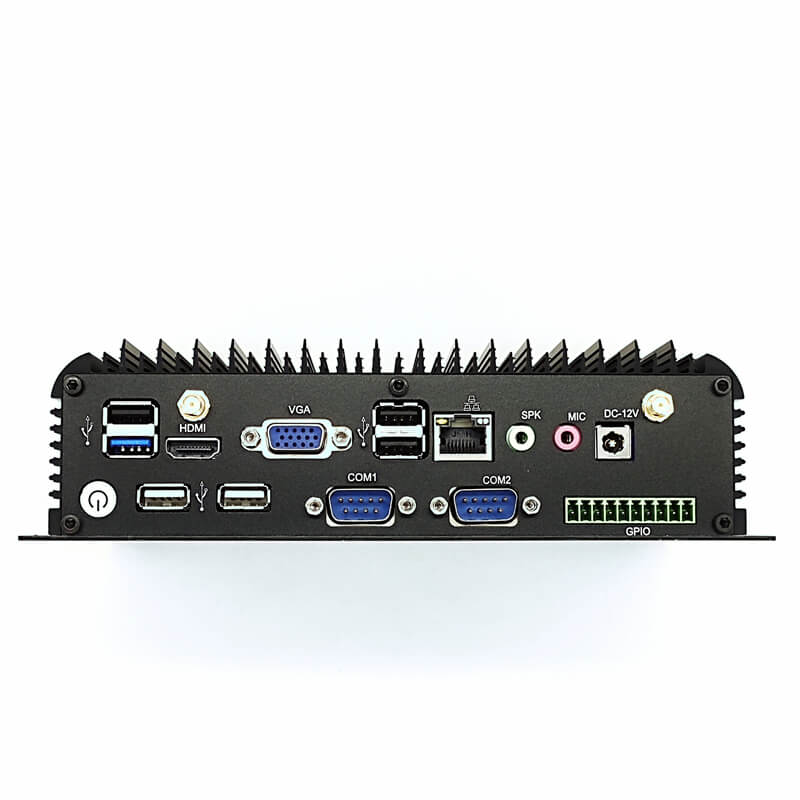

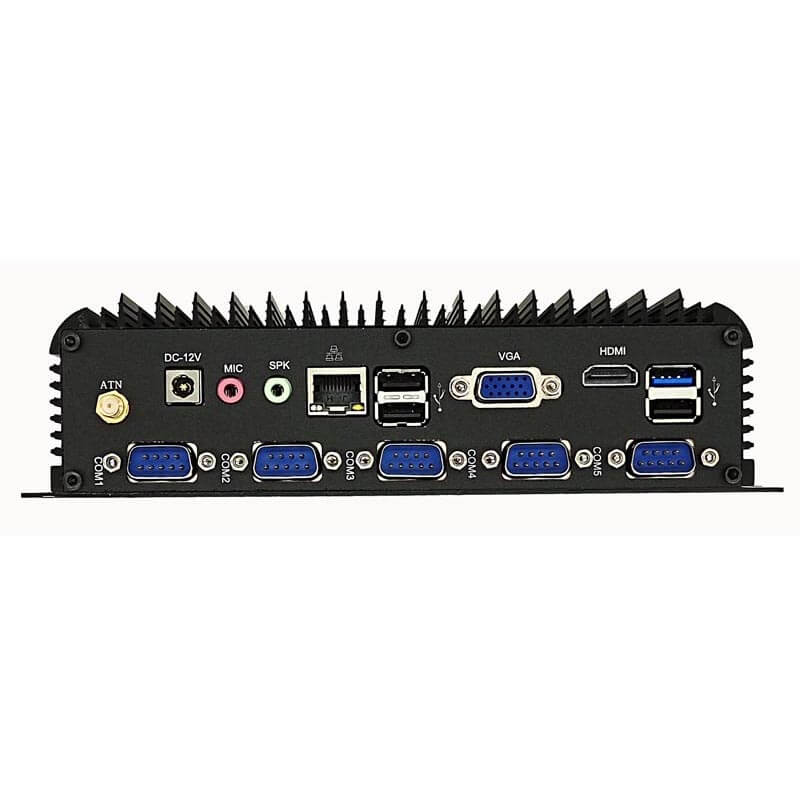

| I/O Interface |
| COM | 2 x COM(Default RS232, 10x RS232 maximum) |
| RS422/485 | Optional (1x RS485/422) |
| VGA | 1x VGA with definition up to 1920x1200@60Hz, DB15 interface |
| HD MI | 1x HDMI, with definition up to 1920x1200@60Hz |
| USB | 3 x USB2.0+1 x USB3.0 |
| LAN | 1 x RJ45, 10/100/1000M(2RJ45 Optional) |
| Audio | Line-out, Mic-in |
| LPT | Optional |
| ATN | 2 x Antenna port |
| GPIO | Optional |
| Power Supply |
| Power Supply | 12V DC Power Input |
| Power Comsuption | <45W |
| Wide Voltage | Optional (DC 6~36V Wide Voltage, IPTS ) |
| Installation |
| VESA | 100mm*100mm and 75mm*75mm |
| Wall-Mounted | Support |
| Din Rail | Support |
| Environments |
| Operating Temp | -10℃~50℃ |
| Storage Temp | -30℃~70℃ |
| Relative Humidity | 5~95%@10℃ (Non-condensing) |
| Vibration | 5~500Hz,1.5G,0.15mm peak value |
| Shake | 1.5 Grms, IEC 60068-2-64, 5 ~ 500 Hz, 1 hr/axis |
| Shock | 10 Grems, IEC 60068-2-64, Half sine wave,for 11 ms |
| EMC | CE/FCC Class A |

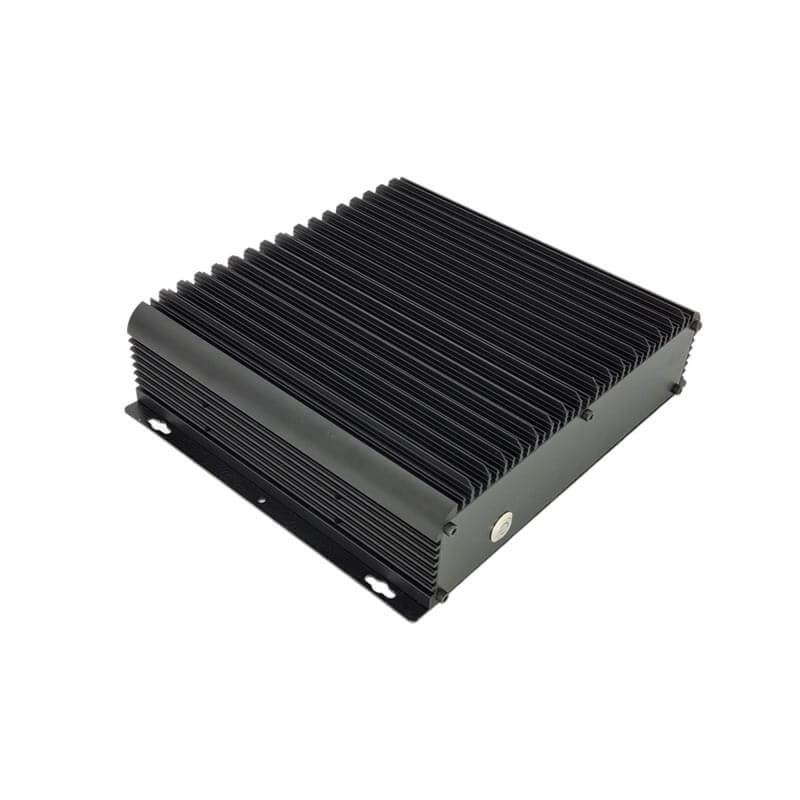

| Enclosure/Mechanical |
| Housing Material | All Aluminum Chassis with fanless design |
| Dimensions | 209 mm (W) x 179 mm (D) x 56.5 mm (H) |
| Net Weight | 2KG |
